JP-X Type F3

It can print barcode and 2D code on different shape of single tag.
Customize for different shape tag is available.

Product features

RoHS COMPLIANT
It can print on not only the rectangle tag, but also the round shape or irregular shape of tag with customized attachement. Please consult with us.
Ink Ribbon Saving.
The ink ribbon feeding is temporarily stopped when the over 30mm blank is included in print data.



Easy design and operation with printing applications,
Nice Label or our dedicated softwares

You can easily edit texts, pictures, lines, rectangles to design labels with Nice Label or our dedicated softwares.

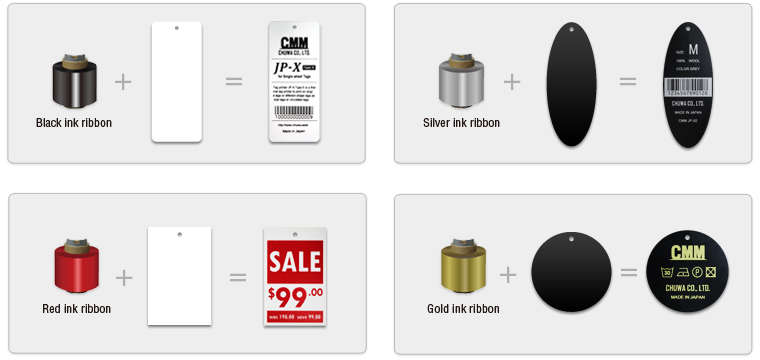

Combination sample : ink ribbon color and tag.

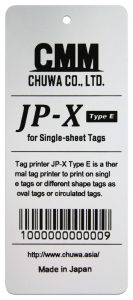

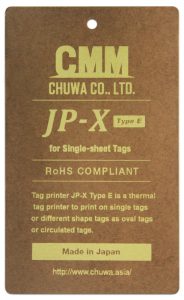

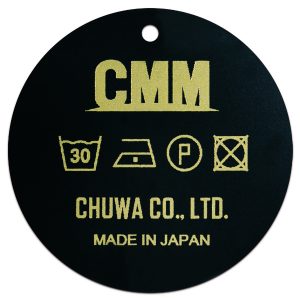

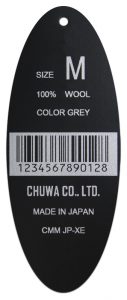

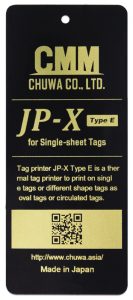

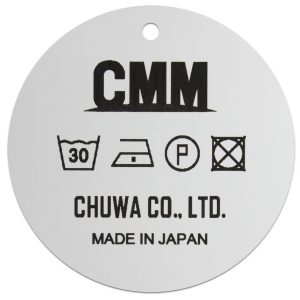

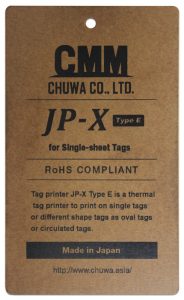

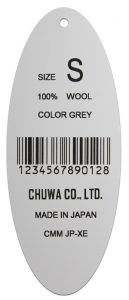

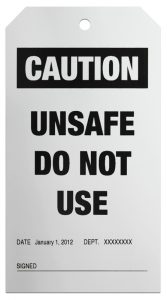

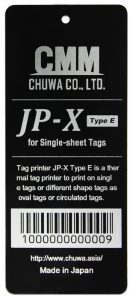

Printing Samples



Function introduction

  • Printing on various shape of tag

    play time:75sec

  • Printing on a round shape tag

    play time:90sec

  • Printing on a black tag

    play time:90sec

  • Printable size

    play time:75sec

  • it saves ink ribbon consumptin

    play time:50sec

Product features

Name JP-XF3
Printing Method Thermal Transfer Dot Matrix
Printing Density 12 dots/mm (300dpi)
Printing Speed 80 to 200 mm/second
Printing Width Max. 64 mm
Printing Length 50 to 300 mm
Interface USB2.0,Optional: LAN connector
Stacker Mechanism Auto-descending Type (Maximum Height: 150mm)
Applicable Barcodes (Linear Barcodes)
JAN(13/8), EAN, UPC/A, UPC/E, 2of5(Industrial), NW7, CODE39, CODE93, CODE128
(2D Barcodes)
PDF417, QR-code, DataMatrix(ECC200), GS1 Composit
Printable Tag Type Single-sheet Tags
Printable Tag Width 19 to 105 mm
Printable Tag Length 50 to 300 mm
Overall Size 335(W) X 345(D) X 465(H) (mm)
Weight 22 kg
Power Source AC100/220V 50/60Hz
Power Consumption Less than 400VA
Accessories Operation Manual, AC Cord
PDF Catalog_JP-X TypeF3

We have original labeling software and printer drivers for Windows 2000(32bit)/XP(32bit)/7(32bit). We supply consumables like ink ribbons and care label tapes.We can offer not only black ink ribbon but red, blue, silver and gold ink ribbons as well.
If you are interested in them, please contact us at this page.
